Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: mapletouch
  • Model Number: POS156U-pos system
  • C P U: 1037u 1.8G duo core
  • HDD: 32G SSD or 320g hard disk
  • type: touch screen pos system
  • certification: CE,FCC,ROSH,CB,USTC
  • touch screen: Mapletouch Muti-touch capactive
  • shell: aluminium alloy
  • warranty: 2years
  • Systems: Windows or Android
  • color: black
  • cpu fan: fanless

Packaging & Delivery

Packaging Details: carton ,wooden case
Delivery Detail: 3-5workdays

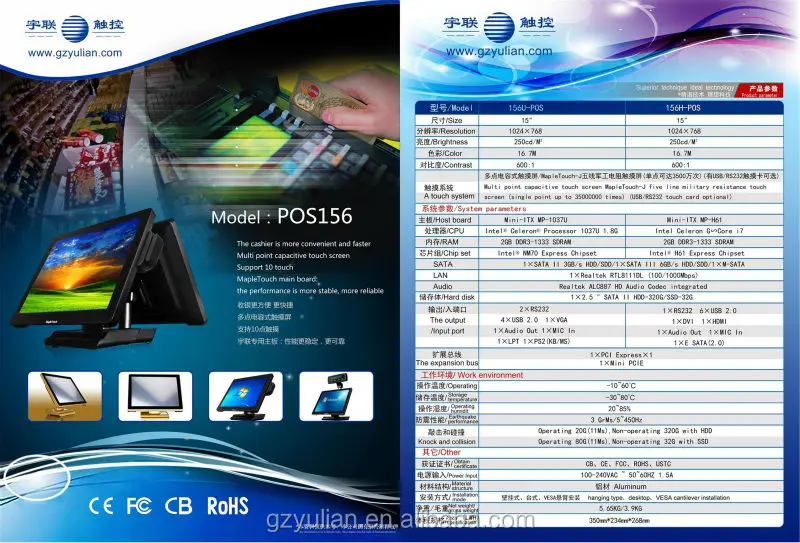

  MapleTouch Model:POS156U muti-touch touch screen POS systems/Android system pos

Product Description



Specification of POS systems
Screen size15
Resolution1024×768
Brightness250cd/M2
color resolution16.7M
contrast ratio600:1
touch screenMuti-touch Projected Capacitive touchscreen support 10point/ MapleTouch-J5wire resistive touch screen(single point 35,000,000times)(USB/RS232 touch controller interface optional)
MotherboardMini-ITX MP-1037U
CPUIntel® 1037U Dual Core CPU
Ram2GB DDR3-1333 SDRAM
Hard disk1×2.5 " SATA II SSD-32G/ HDD-320G
ChipsetIntel® NM70 Express Chipset
SATA1×SATA II 3GB/s HDD/SDD
1×SATA III 6GB/s HDD/SDD
1×M-SATA
LAN1×realtek RTL8111DL (100/1000Mbps)
AudioRealtek ALC887 HD Audio Codec integrated
I/O
RS2322×DB-9 RP-SMA MaleRS232 signal interface (can add 2 more )
USB4×USB 2.0
Audio1×DB-15 Female head VGA interface
1×LVDS 24-bit/18bit LVDS output
Audio interface1×Audio Out     1×MIC In
LPT1×DB-25-pin Female head VGA interface
PS21×6-pin PS2 (Keyboard/mouse)
Expansion bus1× PCI Express x1
1× Mini PCIE
GPIO1× GPIO   (standard no this interface ,but can customize)
Operating temperature-10~60°C
Storage temperature-30~80°C
humidity20~85%
earthquake-proof3 Grms/5~450Hz
CertificationCCC,CB,CE,FCC,ROHS
power input100-240VAC ~ 50~60HZ 1.5A
power output12VDC 5A MAX
MaterialAlloy,outlet board is stainless steel
Install wayPanel,frame,wall-mounted,desktop,VESA
N.W/G.W5.65KG/3.9KG
LWH350mm*234mm*268mm





Peripherals

    :1) 3 Track Magnetic Strip Reader is optional;



      2) 12 inch and 15inch customer display dual screen is available;



      3) 20*2 characters VFD customer display is optional



Warranty:



1,Two years quantity warranty

 2, We will offer free replacements in next order after the quality problems comfirmed .





By sea: depend on quantity and destination port



By express:around 3-7workdays to arrive(DHL,UPS,TNT,EMS,FEDEX etc)



By air :around 3-5days arrive,depend on destination airport.



Payment:1, T/T in advance

        2,Western Union

        3,Paypal

        4,Escrow
